802.11AC | Dual Band | 1200Mbps | 2*Giga
Model: WIS-EAP510

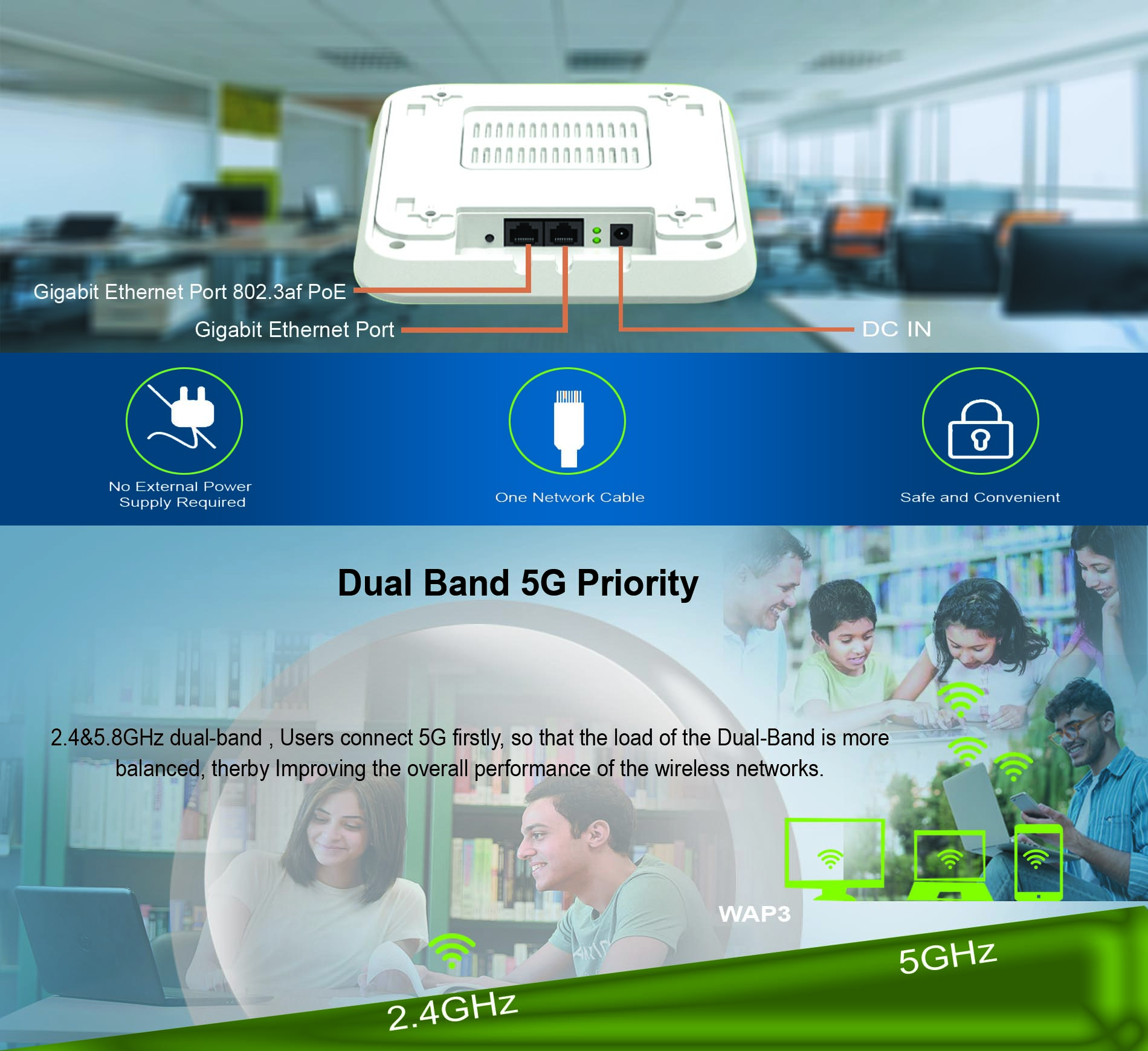

Flexible Power Supply Mode
Standard PoE power supply is used, no external power supply is required, and each AP only need one network cable,
whitch is convenient for construction and fiexible in use.
Fast Auto Roaming
Fast roaming can realiza the switching time between AP and AP in milliseconds, basically without packet loss, while using video and playing games,
when moving between multiple APs, the mobile phone and tablet will automatically switch to the with the best signal.
MODEL |
WIS-EAP510 |
| Standard | 802.11ac/b/g/n, MIMO technology |
| Flash | 16MB |
| DDR3L | 128MB |
| 2.4G Frequency | 2.4GHz - 2.484GHz |
| 2.4G Wi-Fi standard | 802.11b/g/n |
| 5.8G Frequency | 5150~5850MHz |
| 5.8G Wi-Fi Standard | 802.11 a/n/ac |
| Interface | 1 * 10/100 /1000 RJ45 LAN Port(Can be used in WAN) |
| 1 * 10/100 /1000 RJ45 LAN Port | |
| 1 * Reset button, press 15 seconds to revert to default setting | |
| Antenna | Build in 5dBi*2.4 Ghz/4 dBi*5.8 Ghz MIMO Antenna |
| Data Rate | 1200Mbps |
| End Users | 120+ |
| 2.4G RF Power | ≤ 20dBm |
| 5.8G RF Power | ≤ 23dBm |
| PPM | ±20ppm |
| DC | 12V----1A |
| PoE | 48V (IEEE 802.3af) -----0.5A |
| LED light | Sys,2*LAN |
| Power Consumption | ≤ 12W |
| Size | 168mm*168mm*32mm |
| Working Mode | Gateway, AP, Repeater, WISP |
| Wireless Founction | Multiple SSID functions: 2.4GHz: 4; 5.8GHz: 4. |
| Support SSID hidden | |
| Support seamless roaming, 802.11kvr standard. | |
| Support 5G Prior for a faster Ethernet. | |
| Wireless Security: Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP, 802.1x | |
| Support MAC filter | |
| Support Wi-Fi time on/off to save energy | |
| Support client isolation to improve the wireless stability | |
| Support RF power adjustable, adjust the RF power based on environment. | |
| Support user quantity limited, Max 64 users to access each band. | |
| Networking Function | VLAN settings |
| Cloud access support in gateway mode | |
| Device Management | Back-up the configuration |
| Restore the configuration | |
| Reset to factory default | |
| Reboot the device: including time reboot or reboot immediately | |
| Admin management password modify | |
| Firmware upgrade | |
| System log | |
| Support firmware GUI web management, AC controller management, | |
| remote management and cloud management | |
| Protocols | IPv4 |
| Frequency Range | 2.4GHz & 5.8GHz |
| Impedance | 50 Ohms nominal |
| Gain | 4dBi |
| Radiation | Omni |
| Polarization | Vertical |
| S-Parameters | (2.4/ 5.8G #2 VSWR) |
| Other | |
| Package Contents | 1200Mbps Dual Band wireless access point |
| Mounting Material | |
| Quick Installation Guide |
WIS-EAP510
