802.11AX | WIFI 6 | 4x4 MIMO |2.5* Giga

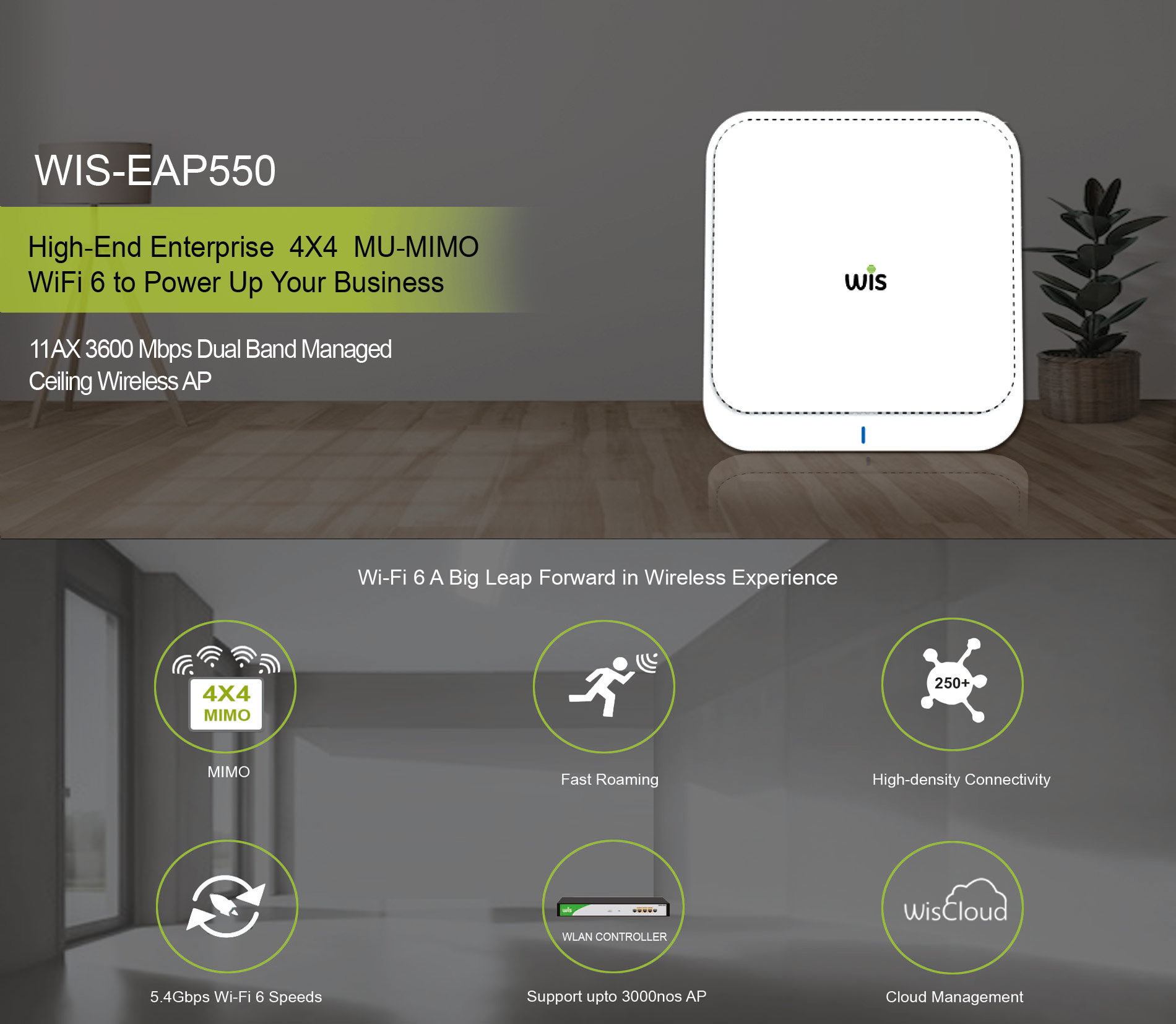

Model: WIS-EAP550

802.11AX | WIFI 6 | 4x4 MIMO |2.5* Giga
802.11AX | WIFI 6 | 4x4 MIMO |2.5* Giga


Full Wi-Fi Coverag in High-Density Environment.

The 802.11ax new-generation Wi-Fi standar Introduces multiple key technologies such as OFDMA, 1024QAM, MU-MIMO, etc., with faster speed,
more devices, and lower delay when multiple terminals use the network at the same time.


Fast  Auto Roaming

Fast roaming can realiza the switching time between AP and AP in milliseconds, basically without packet loss,  while using video and playing games,
when moving between multiple APs, the mobile phone and tablet will automatically switch to the with the best signal.

A New Generation of Wireless Encryption Protocol WPA3

With advanced enterprise security, WPA3 provides more data security for previously unsecured and open
WiFi hotspots The Key with Higher security factor provides stronger protection.

Model WIS-EAP550
Chipset  Qualcomm
Flash SPI NOR 8MB
DDR3 512MB*2
Nand Flash                               128MB
2.4G RF QCN5024-2.4G external FEM: SKY85334-11
5.8G RF QCN5054-5.8G external FEM: SKY85750-11
2.4G Frequency 2.4GHz – 2.484GHz
2.4G Protocol 802.11 b / g / n /ac /ax
5G Frequency 5.150GHz~5.850GHz
5G Protocol 802.11 a / n / ac /ax
Antenna  4*2.4G/5.8G dual band omin antennas: 3 dBi+

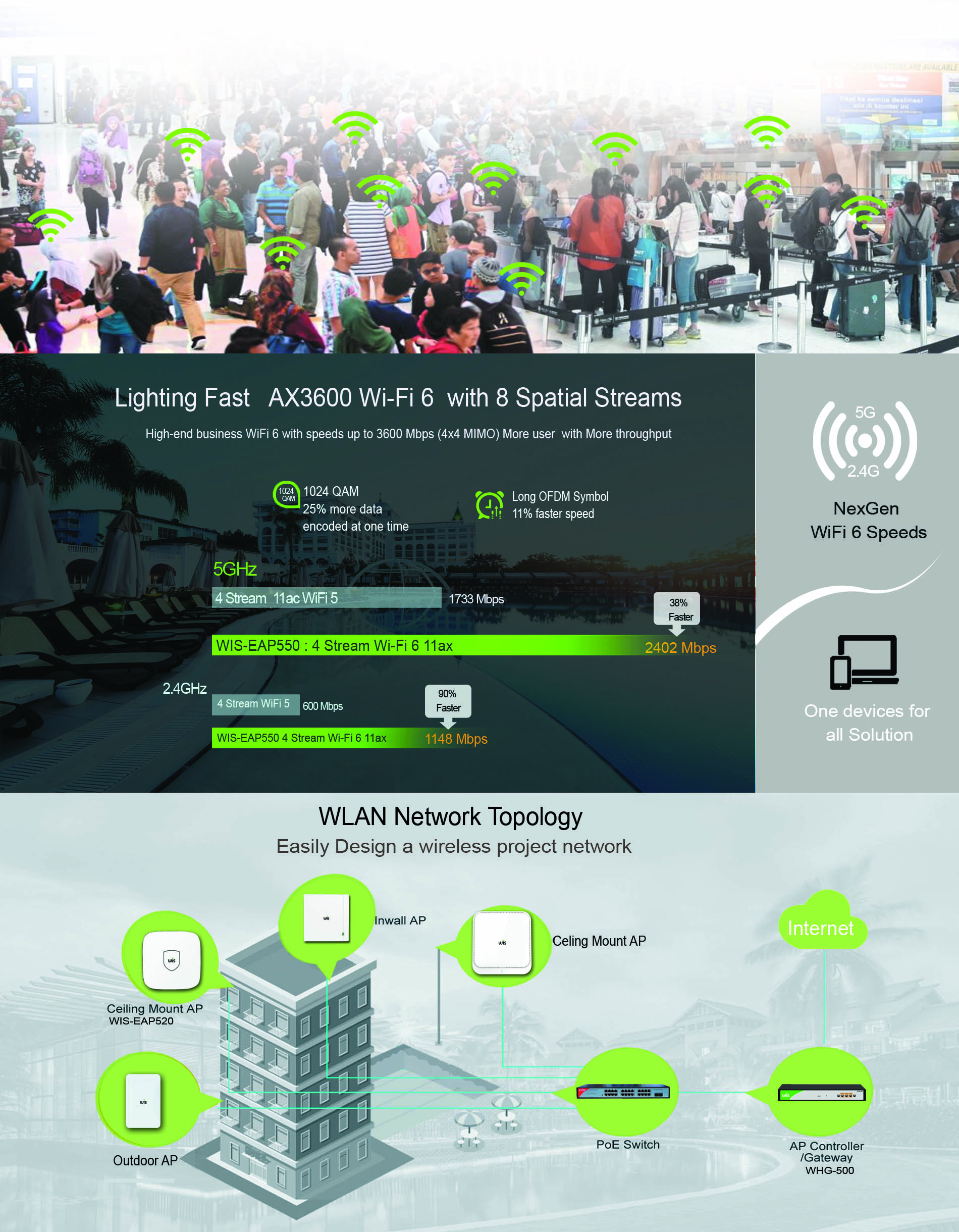

Data Rate 2.4G 1148 Mbps MIMO 4*4, 5G 2402Mbps MIMO 4*4
2.4G EVM 802.11b: ≤-10 dB ;802.11g: ≤-25 dB ;802.11n: ≤-28dB ; 802.11ax: ≤-35 dB
5G EVM 802.11a: ≤-25 dB ;802.11n: ≤-28 dB ;802.11ac: ≤-32 dB;  802.11ax: ≤-35 dB
ppm ±20ppm
WAN 1*10/100/1000/2500M RJ45, support 48V PoE
LAN 1*10/100/1000/2500M RJ45
Reset Reset to factory settings by pressing 6-10 seconds
Indicators WAN, LAN, tricolor LED(sys-red, 2.4G-green, 5.8G-blue)
Power DC2.0 12V - 2A, 48V PoE 802.3at
Max Power Consumption          < 22W
Dimension  198mm×198mm×41mm
Weight 0.9kg
Temperature Working: -20°C to 45°C;Storage: -40°C to 70°C;Humidity: 5%~95%(Non-Condensing)
ESD Air:±8K, Touch:±4K
Electrical Surge Common Mode: 2K, Differential Mode: 1K
Working Mode                            Gateway, AP
Wireless Functions                    Multiple SSID functions: 2.4GHz: 4; 5.8GHz: 4.
                                              Support SSID hidden
                                                   Support seamless roaming, 802.11kvr standard.
                                                 Support 5G Prior for a faster Ethernet.
                                                    Wireless Security: Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP, 802.1x
                                                 Support MAC filter
                                                       Support Wi-Fi time on/off to save energy
                                                Support client isolation to improve the wireless stability
                                                      Support RF power adjustable, adjust the RF power based on environment.
                                                    Support user quantity limited, Max 64 users to access each band.
Networking Function             VLAN settings
                                                   Cloud access support in gateway mode
Device Management                 Back-up the configuration
                                                      Restore the configuration
                                                 Reset to factory default
                                                    Reboot the device: including time reboot or reboot immediately
                                                  Admin management password modify
                                            Firmware upgrade
                                                  System log
                                                      Support firmware GUI web management, AC controller management,
                                                  remote management and cloud management
